Air Compressor Series > Air Compressor Pump

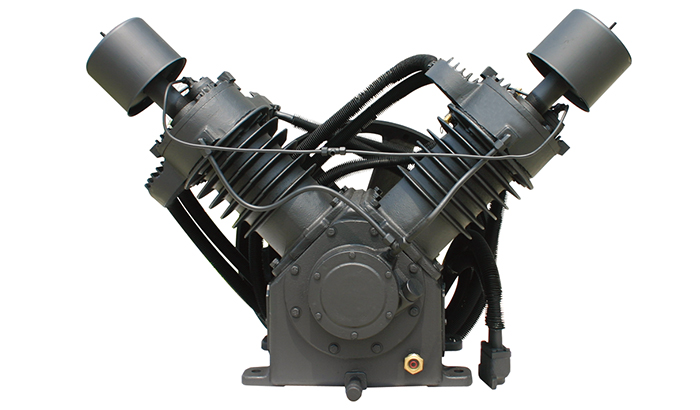

  • YL462

  • 空壓機主機參數(shù)表
    型號 排氣量 壓力 轉(zhuǎn)速 功率 缸徑×個數(shù) 行程 凈重 外形尺寸
    MODEL AIR DELIVERY PRESSURE SPEED POWER CYL.DIA. × CYL.NO. STROKE N.W. OUTSIDE DIMENSION
    (M3/Min) (Mpa/Bar) (RPM) (Kw/HP) (mm) (mm) (Kg) (mm)
    YL462 2.4 1.4/14 775 22/30 140×2 76.2×2 127 300 740×530×430
